SINTRON
ST-005
Coin & Mobile Payment Timer Box · 220V–240V · 30A
US Canada free shipping now. 3~6 working days delivery.
update: 10/19/2026 Paypal Stripe Square myPOS Revolut payment gateway available.
The Sintron ST-005 is a timer box designed to control the operation time of electronic devices, with a specific focus on dryers in North America. It offers full flexibility, allowing you to customize the runtime, pricing, and display text on the screen. Additionally, you can configure it to receive daily revenue reports via email.
To use the connected device, users must make a payment first. The ST-005 accepts up to 8 different coin types, includes a built-in counter for tracking payment history, and features an LCD screen. In addition to coin acceptance, it supports various mobile and digital payment methods, including credit/debit cards, Apple Pay, Google Pay, PayPal, Venmo, Cash App, and more."
Note: The difference between ST-004 and ST-005 would be: ST-004 is mainly used for regular plug in all over the world ( US/Canada/Europe etc.. not limited) , while ST-005 is designed to use for 30A plug "only" in US/Canada.
BRAND & PATENTS

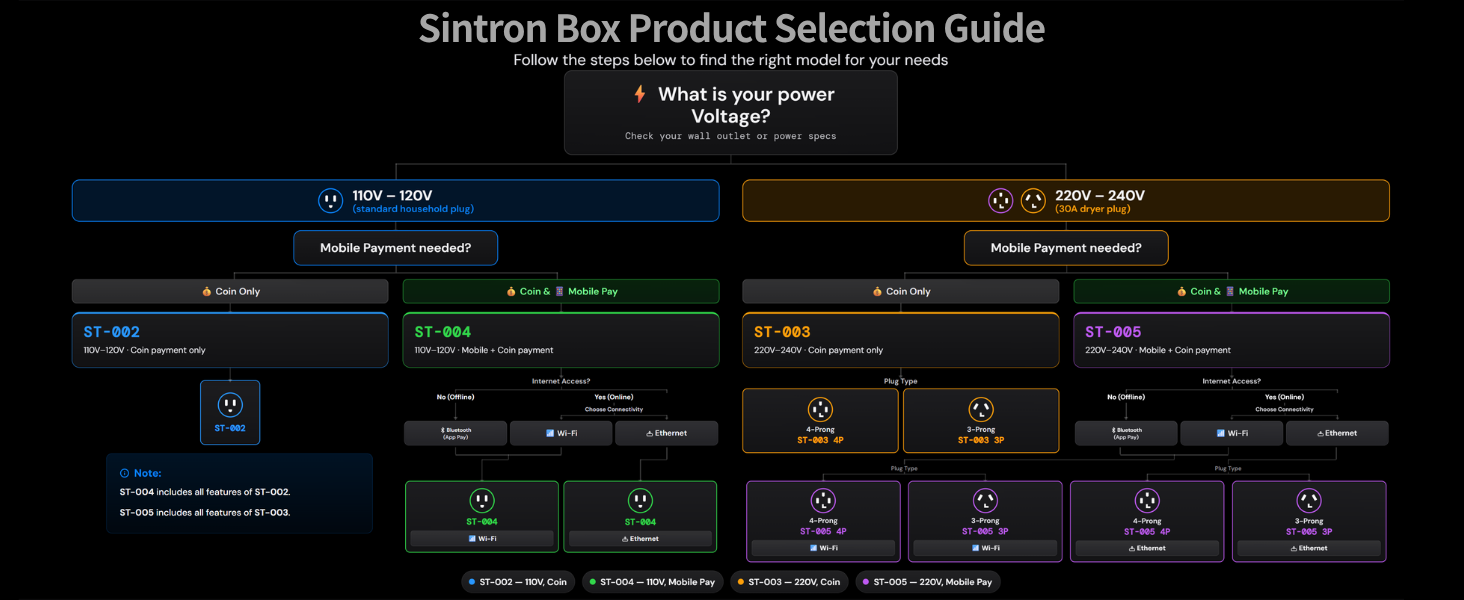

The SINTRON brand is registered in the United States, Canada, the UK, the EU, and Mexico. The ST-004/ST-005 design has been filed for a patent, and the selection guide specifies which Sintron box best suits your needs.
01020304 / 04
SUPERIOR PERFORMANCE
The Sintron ST-005 introduces a new design tailored for US/Canada electronic devices, supporting up to 30A, including appliances like washers. Enhanced with an LCD display and mobile payment functionality for added convenience.
MOBILE PAYMENTS

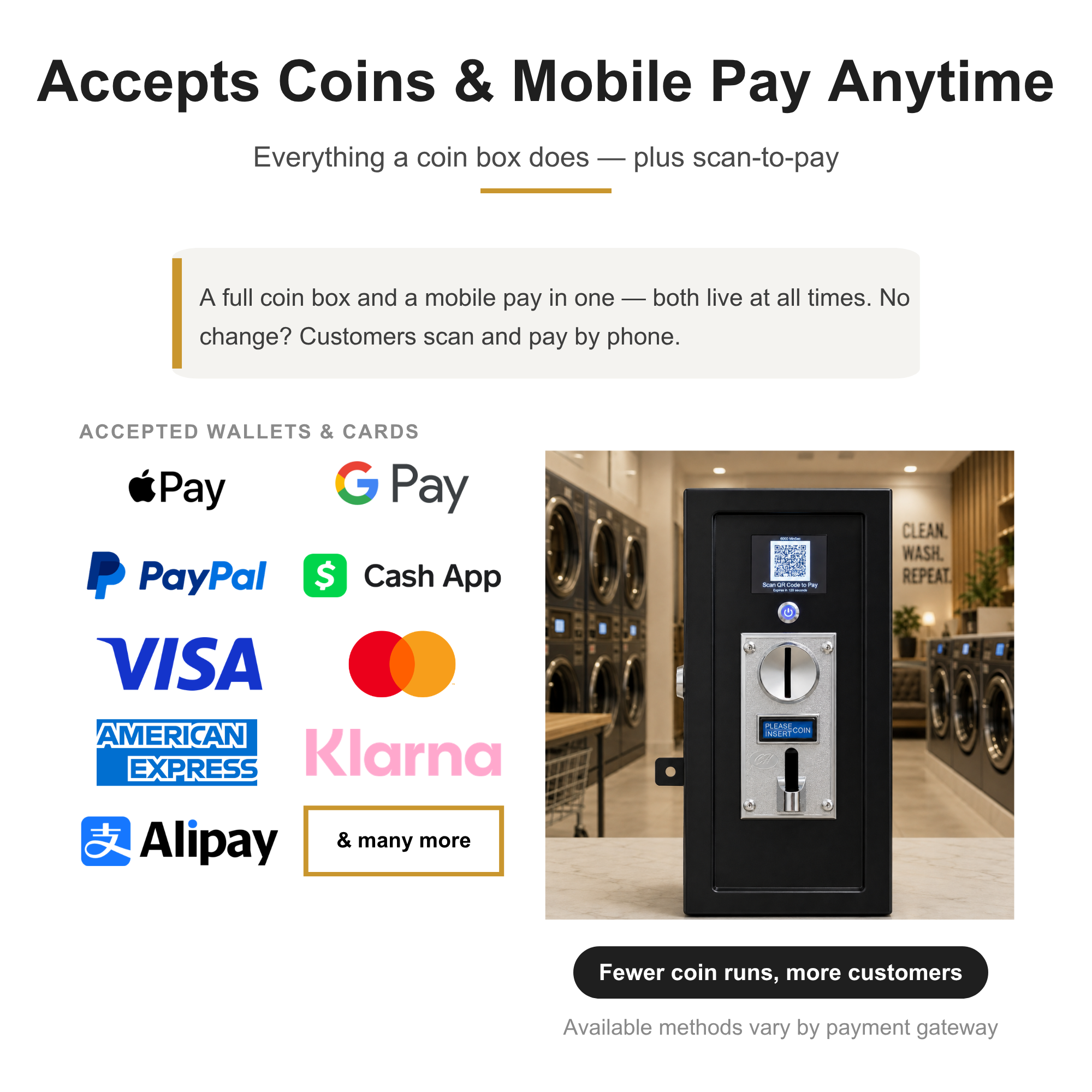

The ST-005 Timer Control Power Box is the only product on the market that supports mobile payments, including Apple Pay, Google Pay, PayPal, Venmo, Cash App, and credit cards (not limited to these options). As mobile phones are now ubiquitous, the convenience of mobile payments will likely increase the likelihood of transactions and boost your income.

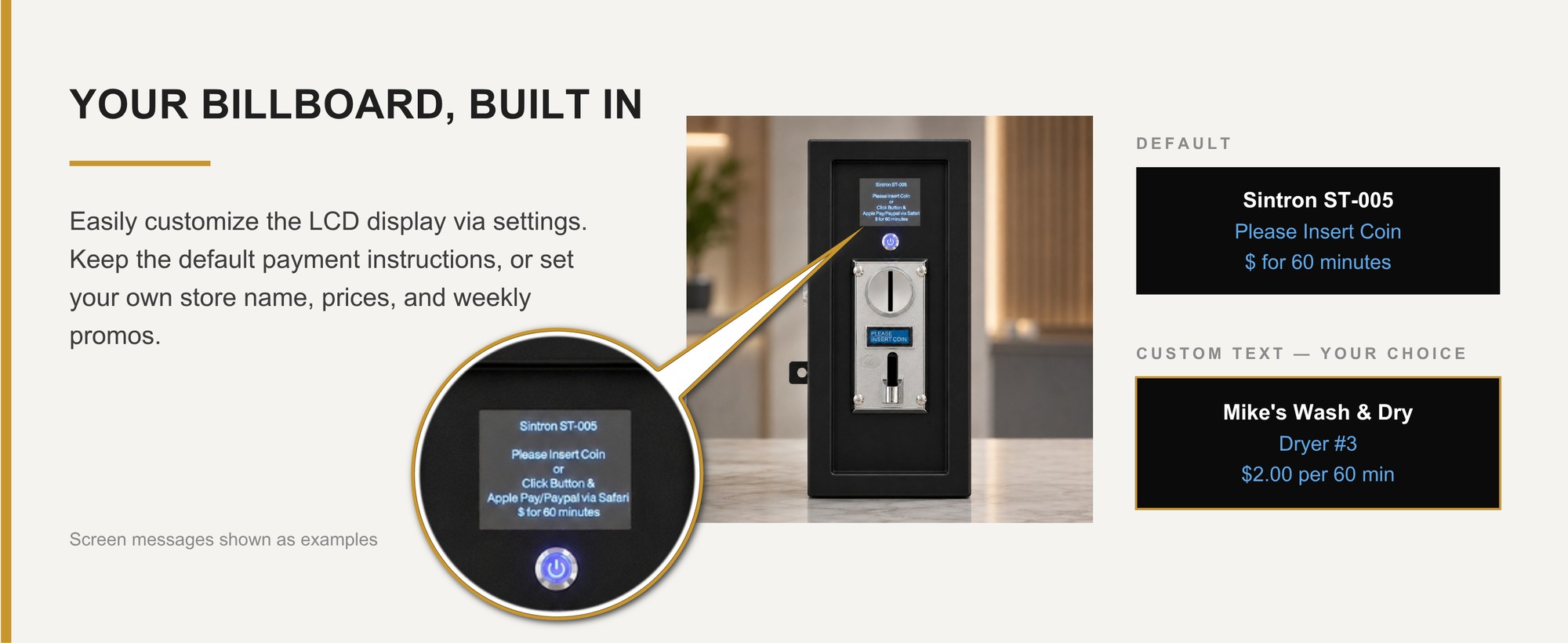

CUSTOMIZABLE LCD DISPLAY
You have the flexibility to personalize the on-screen text on your device. Set information like your store name or contact number, ensuring that your customers can easily reach you and stay connected.
OTA UPDATES
The ST-005 features Over-The-Air (OTA) firmware updates, allowing you to easily access the latest firmware when necessary. If you require additional functionalities, don't hesitate to reach out to us for customization. Please note that extra fees may apply for these personalized enhancements.
BUILT FOR LAUNDRY

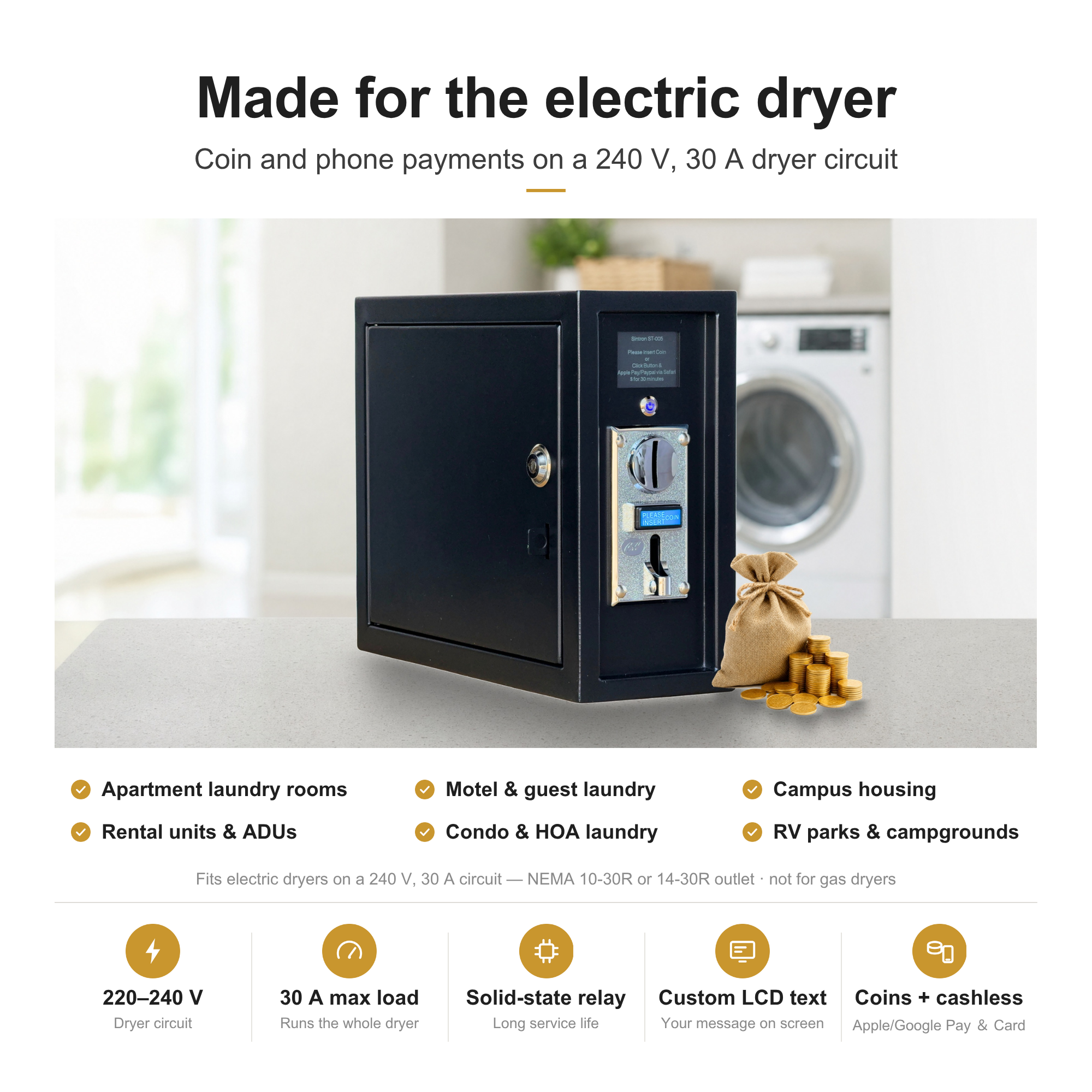

Engineered specifically for US and Canadian dryers, the ST-005 Timer Control Power Box provides reliable runtime and payment management for self-service laundry facilities.
QUALIFIED PRODUCT
We have applied for a patent for this product. All cables used meet safety regulations to protect your safety!
NOTICE: Mobile payment is optional. To use it you need internet access where the box is installed and a PayPal Business, Stripe or Square account.

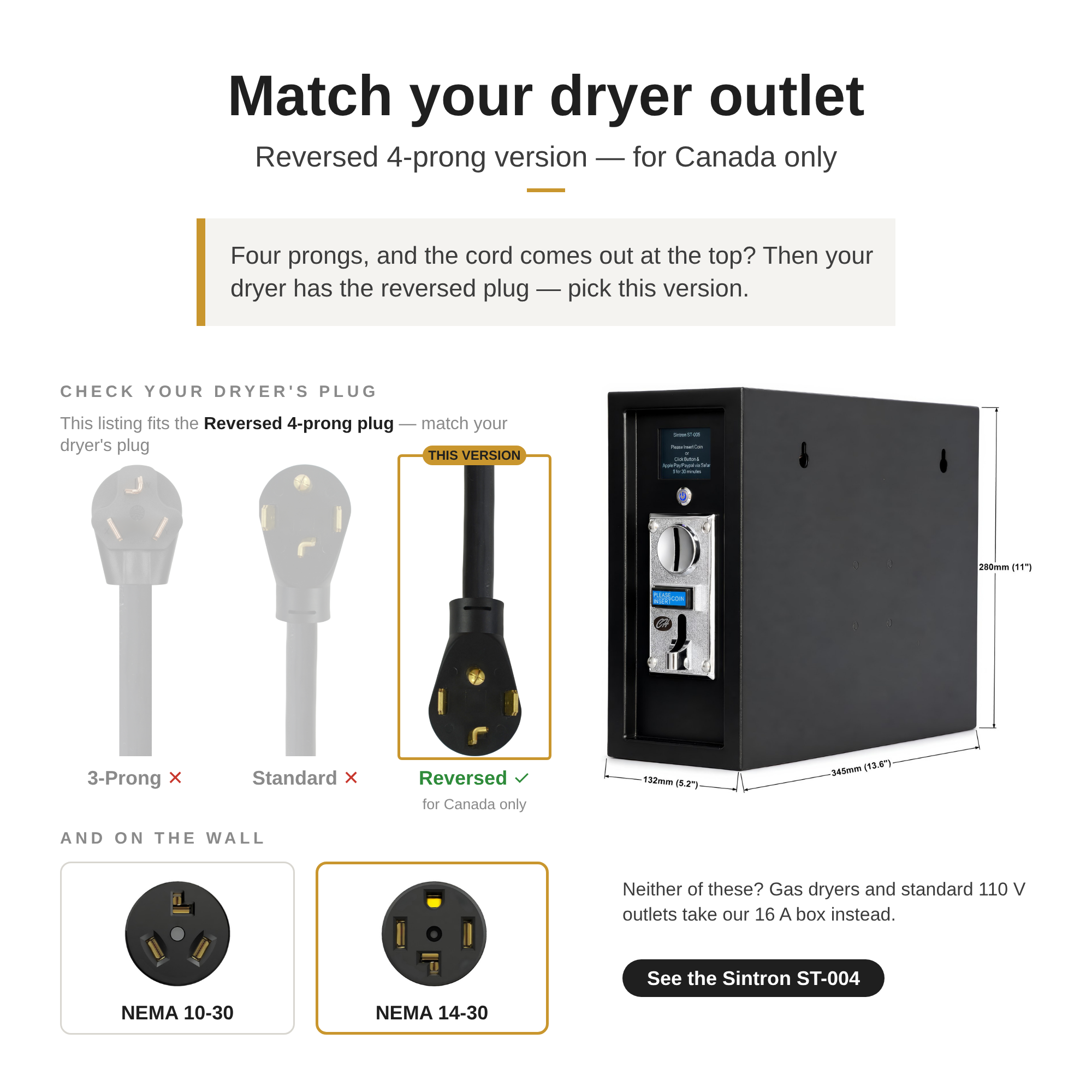

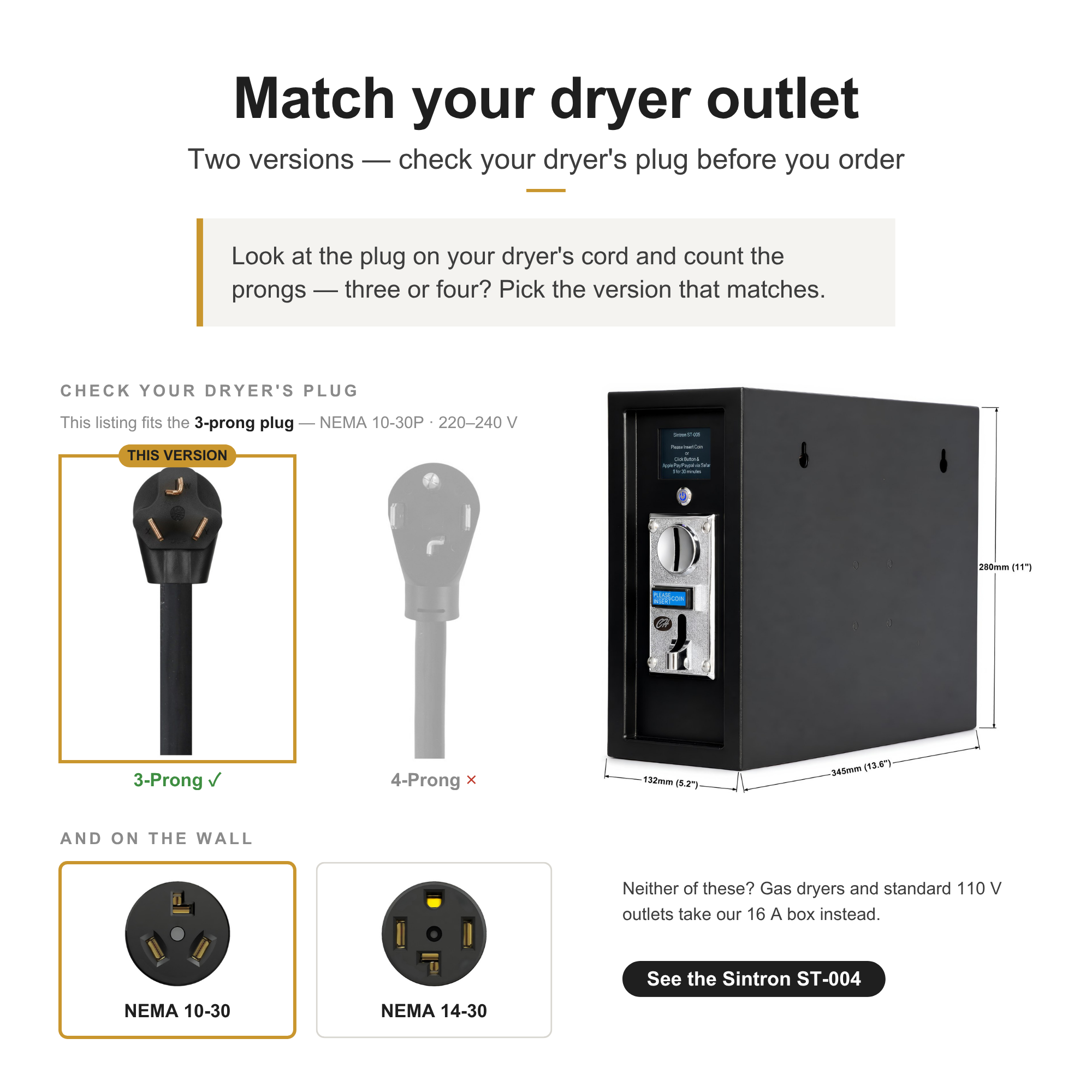

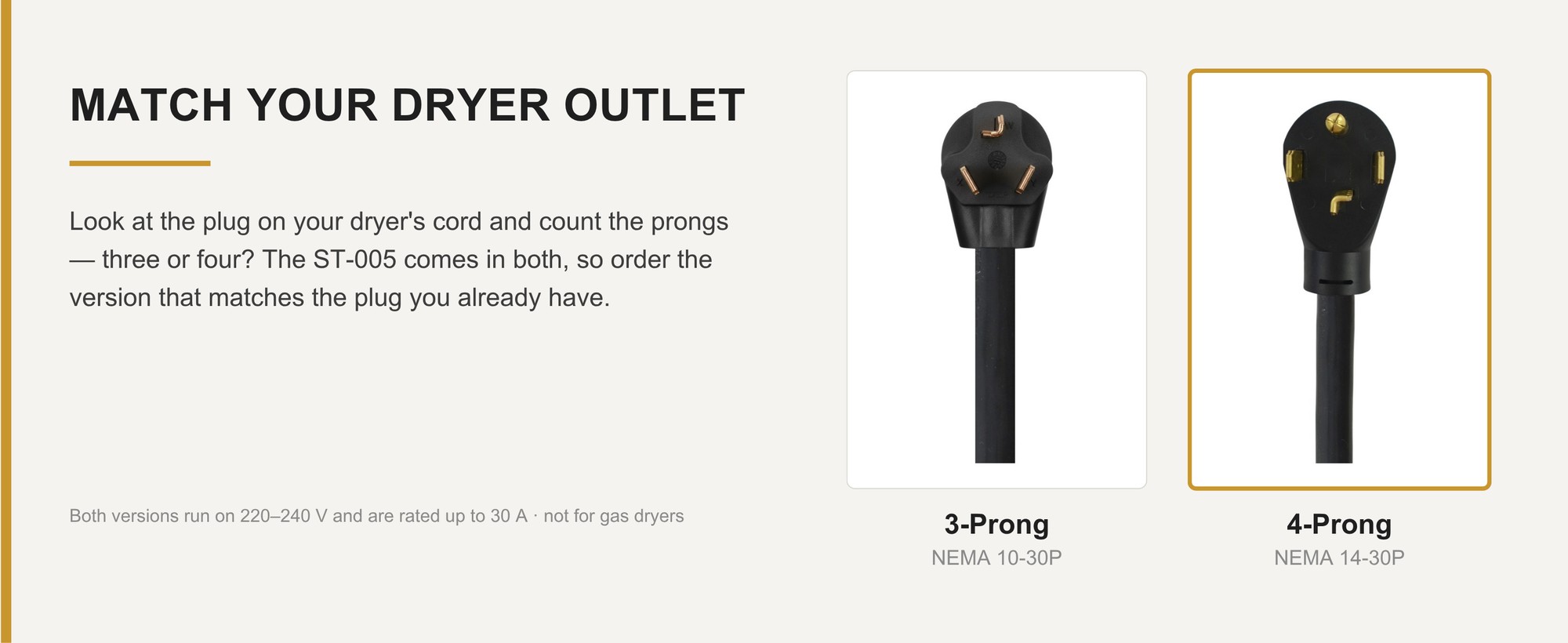

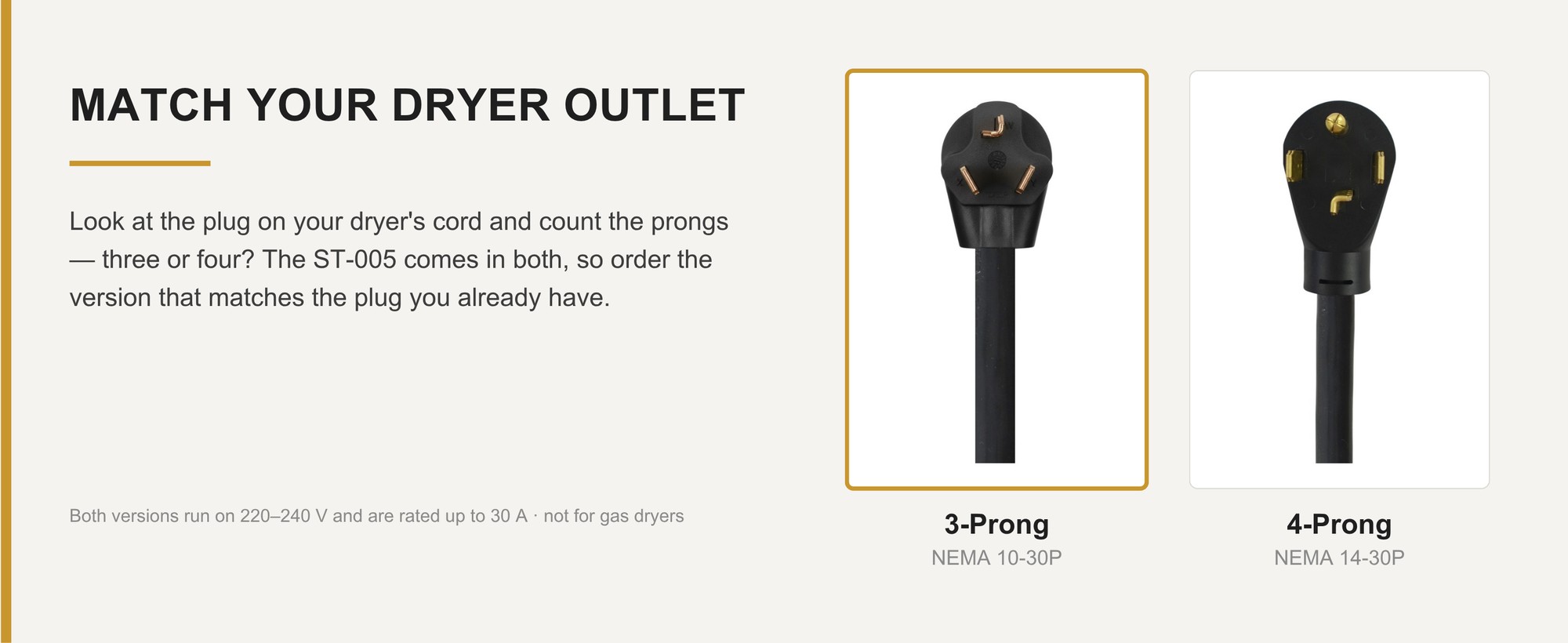

WHICH PLUGCheck the plug on your dryer's cord and count the prongs before you order, then pick the matching Model above. Three prongs is the NEMA 10-30P version; four prongs is the NEMA 14-30P version.
VOLTAGE & CURRENTThe ST-005 is built for 220V–240V circuits rated up to 30A. For household 110V–120V outlets up to 16A, please use the ST-004 or ST-004-F instead. Gas dryers run from a standard 110V outlet, so they take the ST-004 series, not this box.

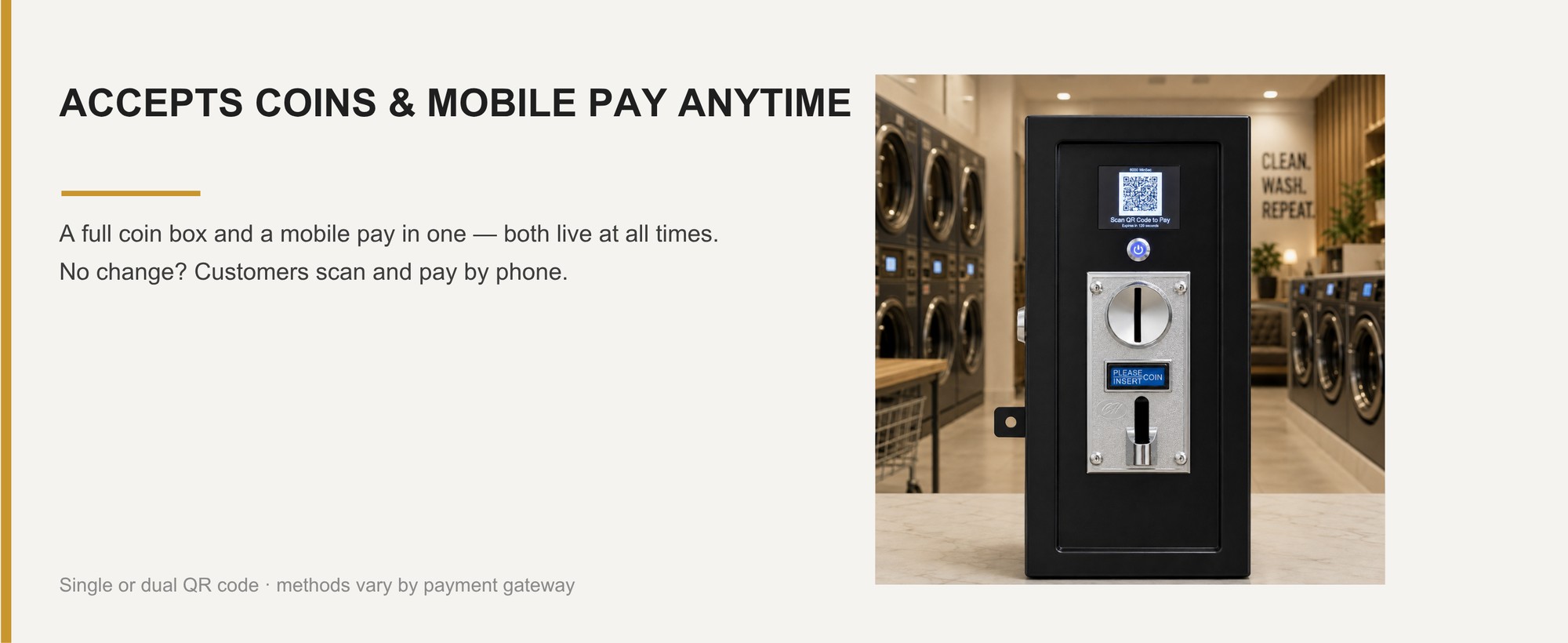

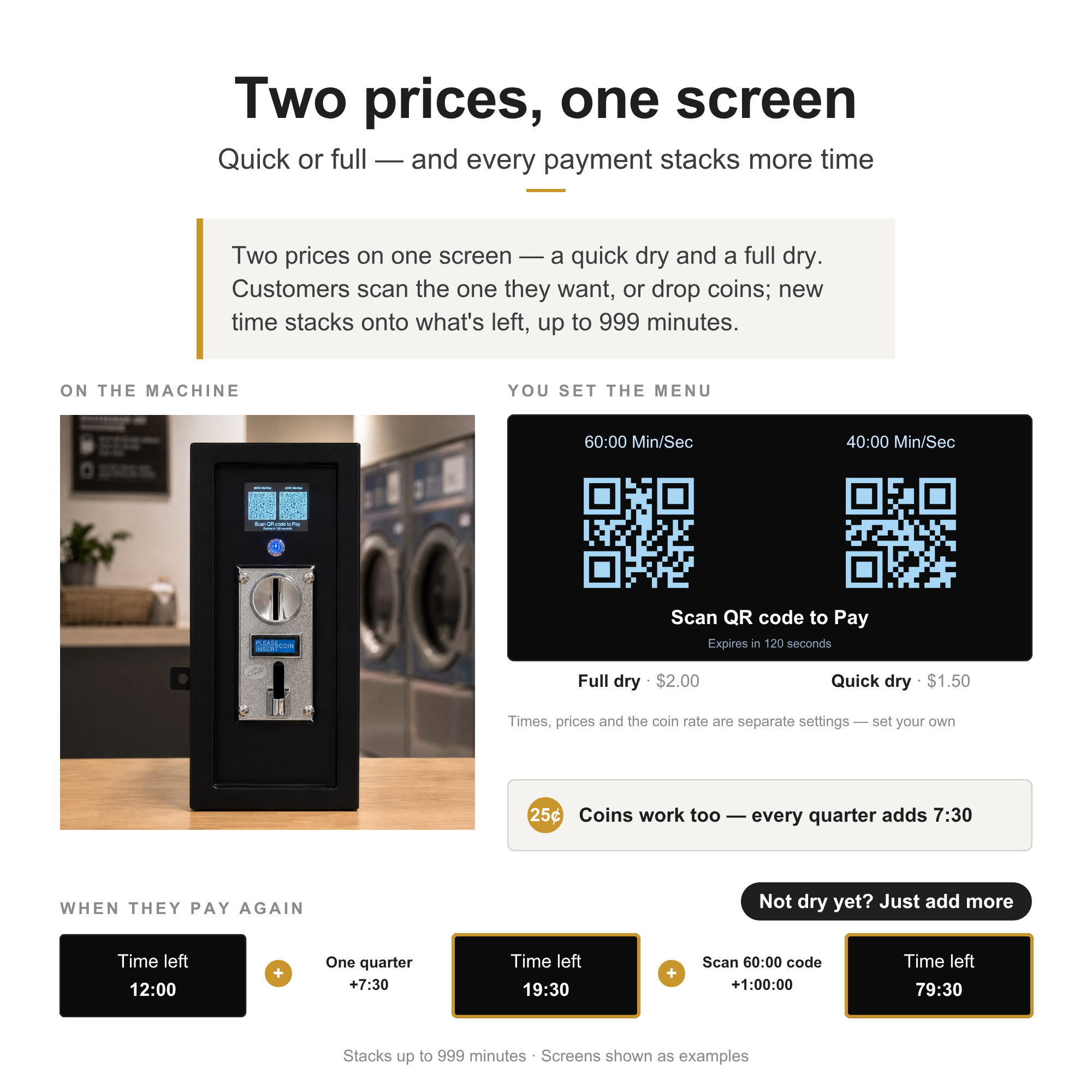

WHAT IT ISThe Sintron ST-005 is a timer box that controls how long a machine is allowed to run. You set the time, the price and the text shown on the LCD; the user pays before the machine will start. It takes up to 8 coin types through the Sintron ST-001 acceptor and keeps a counter of the payments it has taken. Alongside coins it supports mobile payment — customers scan the QR code on the screen with a phone camera and pay in the browser, with no app to install on their side. Supported methods include, but are not limited to, credit/debit cards, Apple Pay, Google Pay, PayPal, Venmo and Cash App. The ST-005 is built for electric dryers in self-service laundry facilities across the US and Canada.

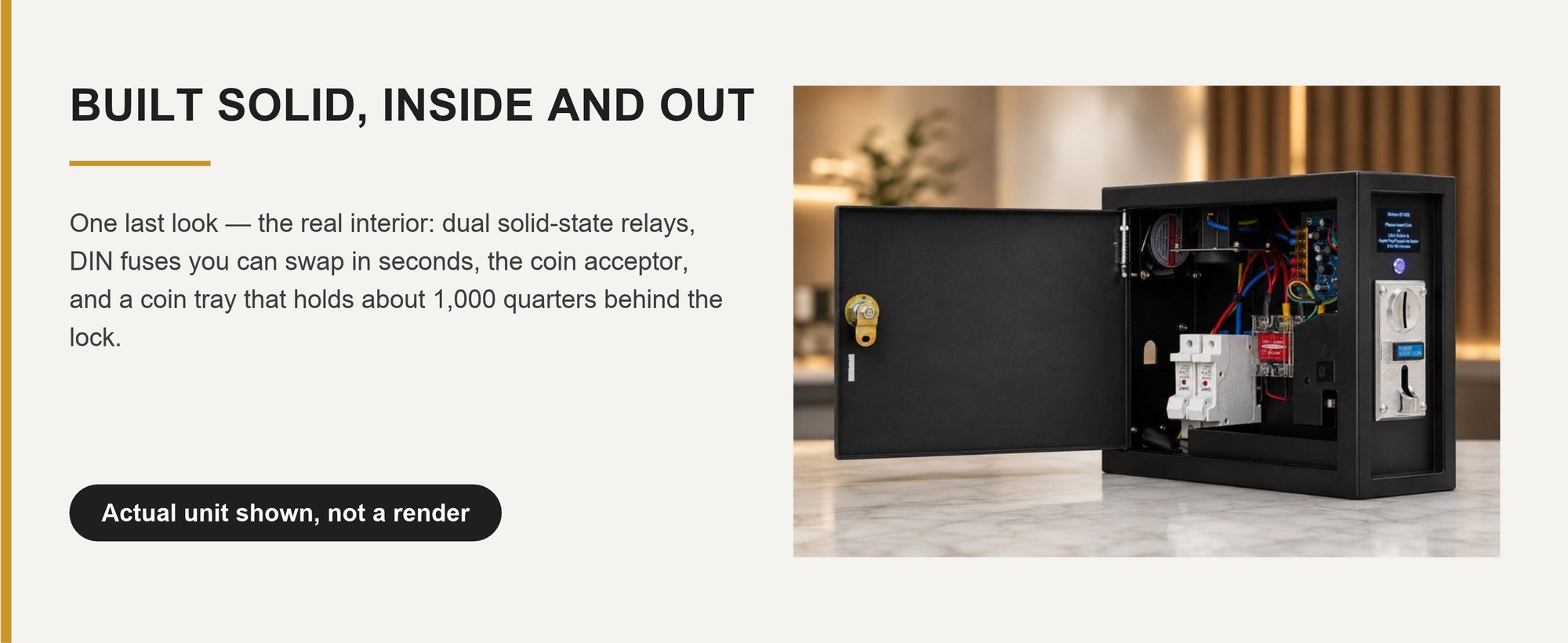

GENUINE SINTRONPlease make sure you are getting the GENUINE Sintron ST-005. There are no-brand copies on the market that do not meet the same safety requirements and are rated well below 30A. An easy check: ask whether theirs uses solid-state relays.
VIDEOS
See the payment box in action — demos filmed on the ST-004, which uses the same coin and mobile payment system as the ST-005.
Sintron ST-004 coin mobile payment box transforms your home washing machine into a commercial one.
Sintron ST-004 Mobile Payment Demo
Sintron ST-004 Apply Pay Payment Test - Apple Pay & Paypal & Coin payment accepted operated box
Sintron ST-004 Batch Testing before shipment - mobile & coin payment operated machine box

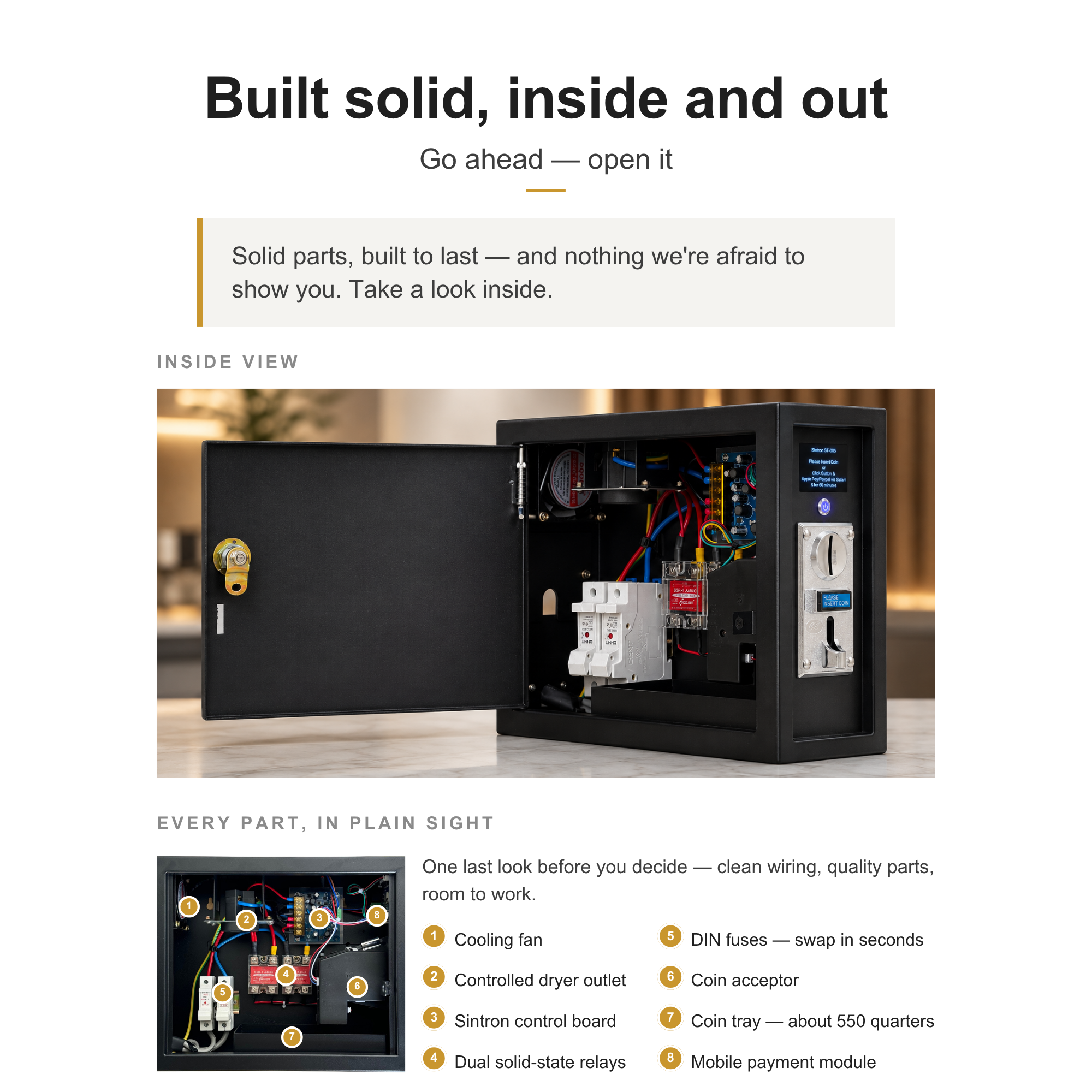

THE ST-005 UP CLOSE

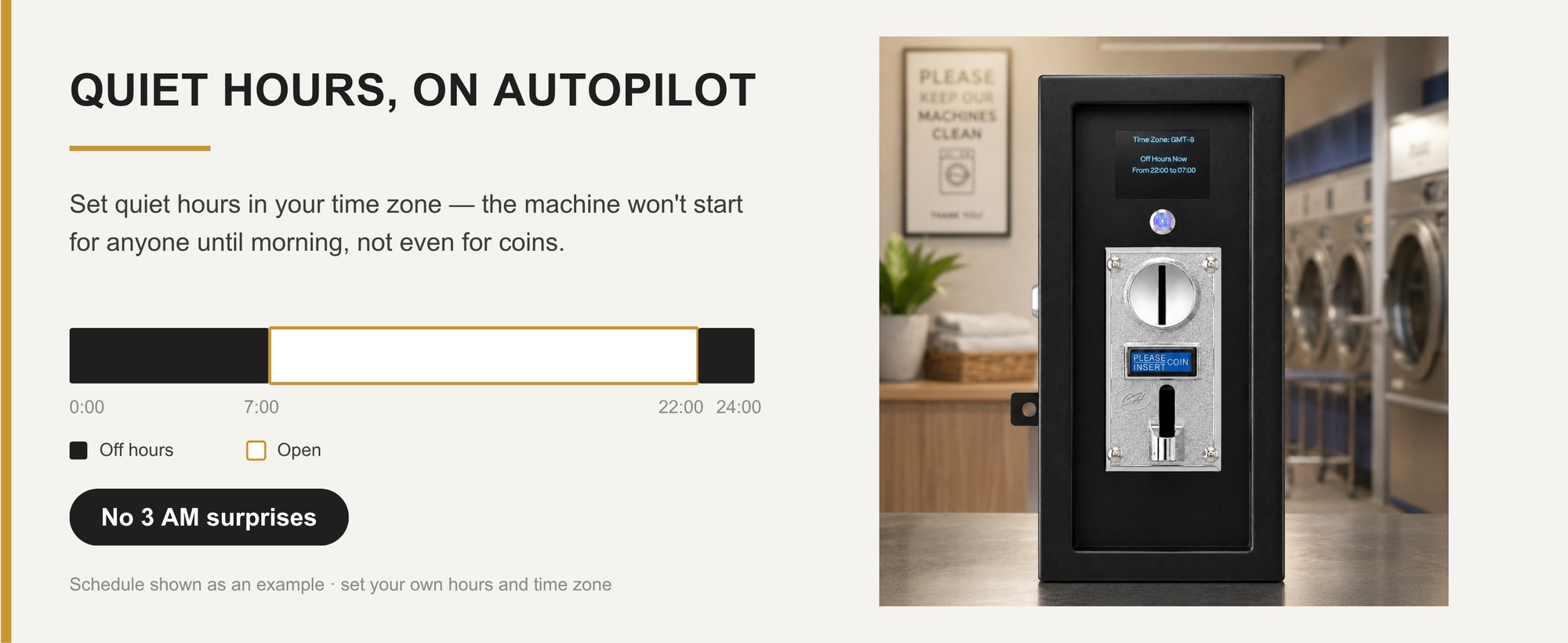

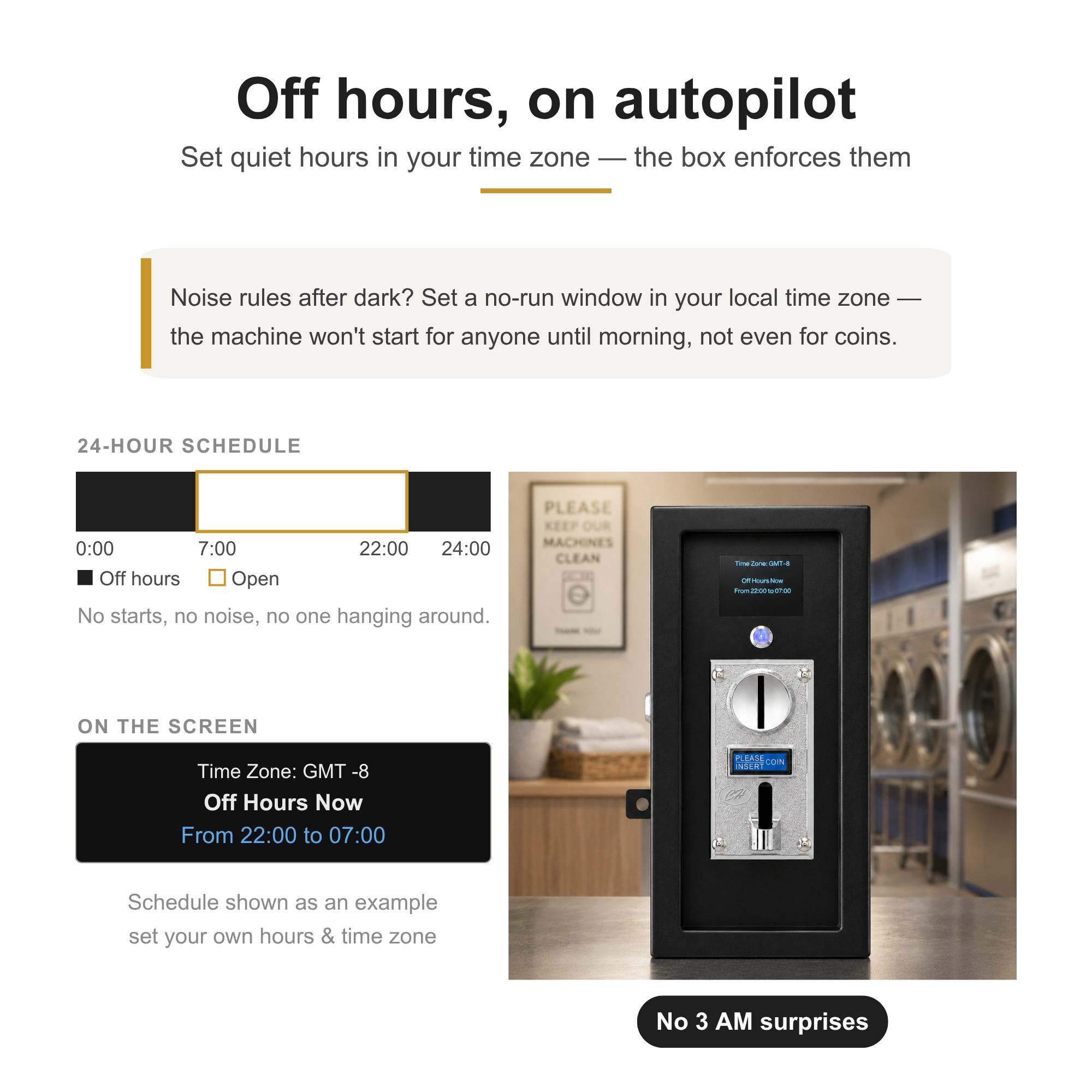

Plug versions, coins and mobile pay in one box, the LCD you can rewrite, quiet hours, and the build inside.
01020304050607 / 07
PAYMENT GATEWAY COMPARE
The ST-005 connects to your own PayPal Business, Stripe or Square account — payments go straight to that account. Fees shown are each provider's published rates at the time of writing; please check their current pricing.
| Payment Gateway | Payment Methods Supported | Transaction Fees | Micropayment Rate | International Transactions | Chargeback Fee | Monthly Fee |
|---|---|---|---|---|---|---|
| PayPal | Credit/debit cards, PayPal account, Venmo, Apple Pay, Google Pay | Varies by country and transaction type | 5% + $0.05 per transaction (for payments under $10 USD) | Supported, with currency conversion fees | $20 per chargeback | None (for standard payments) |
| Stripe | Credit/debit cards, various payment methods (check more), Apple Pay, Google Pay | 2.6% + $0.30 per transaction (US pricing) (pricing) | Not applicable | Supported, multi-currency support | $15 per chargeback | None (for standard payments) |
| Square | Credit/debit cards, Apple Pay, Google Pay, gift cards (check more) | 2.6% + $0.30 per transaction (US pricing) (pricing) | Not applicable | Limited international support, USD only | $0 (Square covers the cost) | None (for standard payments) |

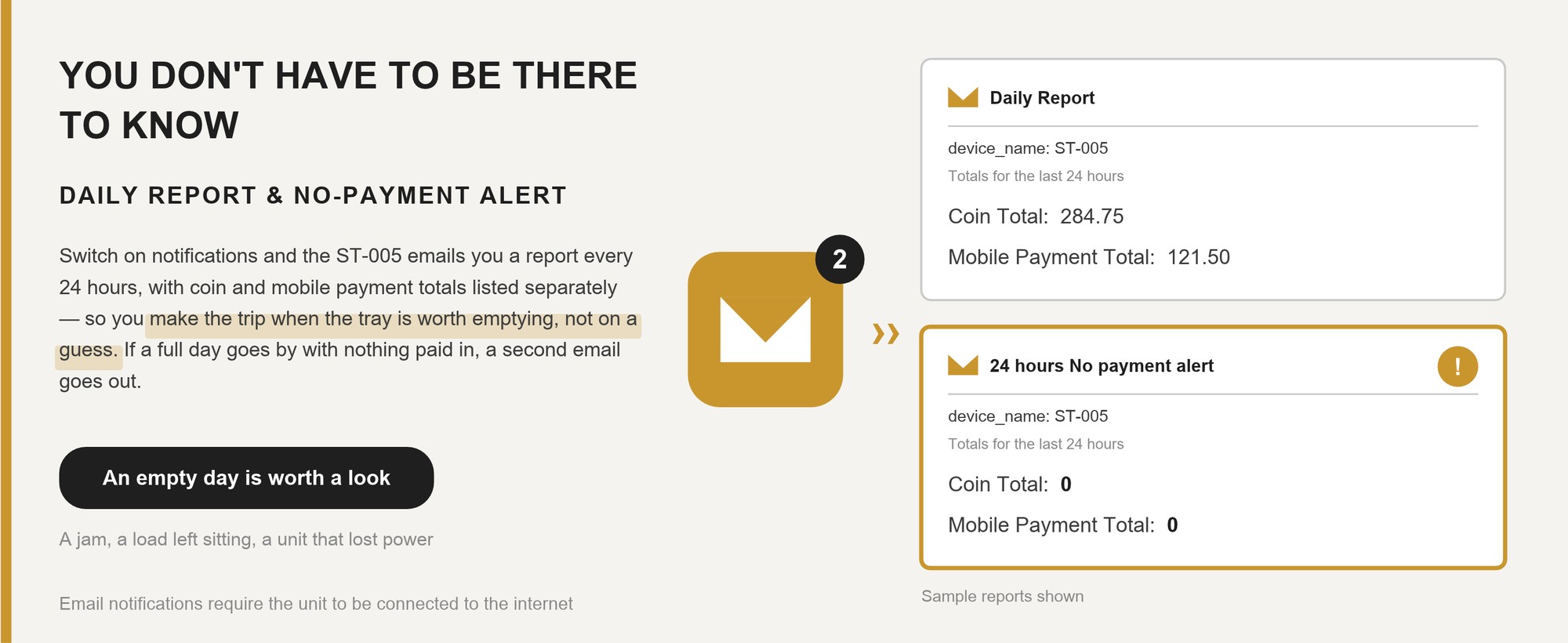

REPORTS & WAYS TO GET PAID

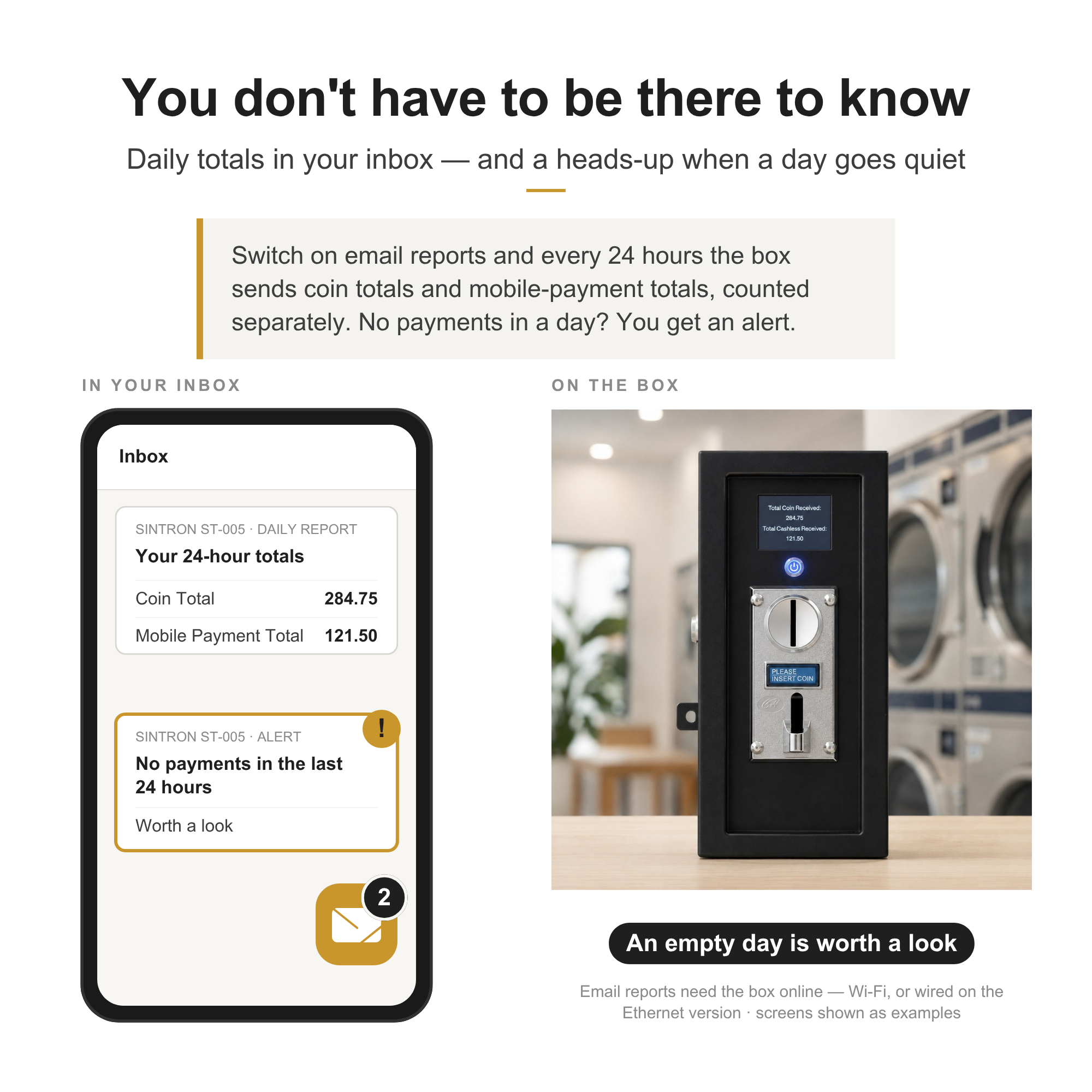

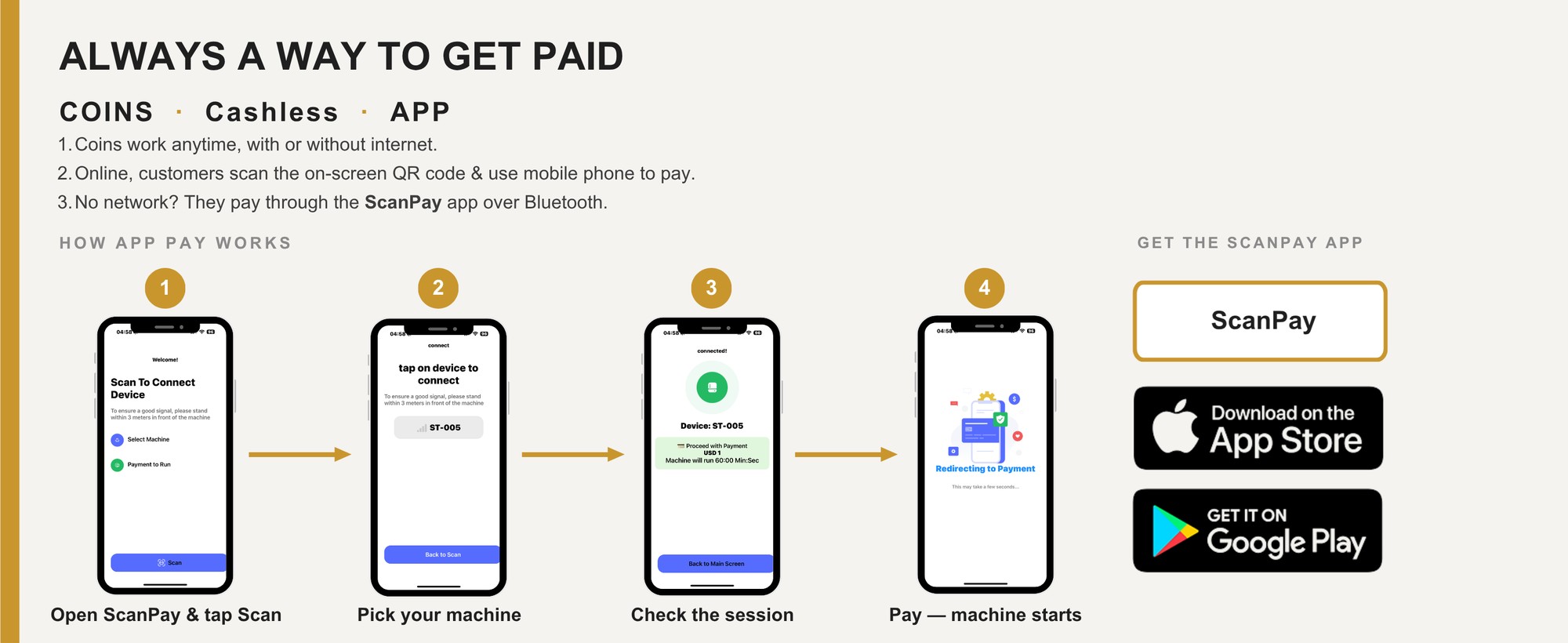

Daily email totals with a no-payment alert, and every payment path: coins, the QR code on screen, or the ScanPay app over Bluetooth.
0102 / 02
WHAT'S IN THE BOX

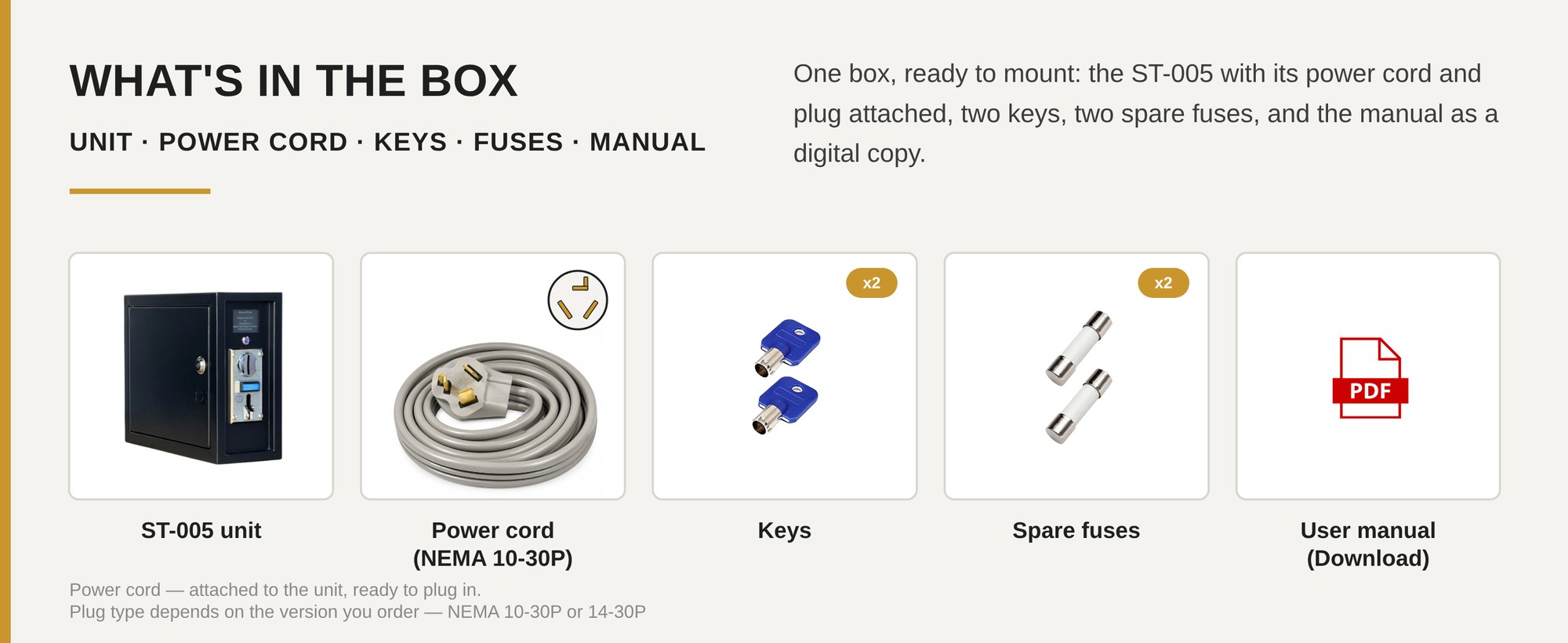

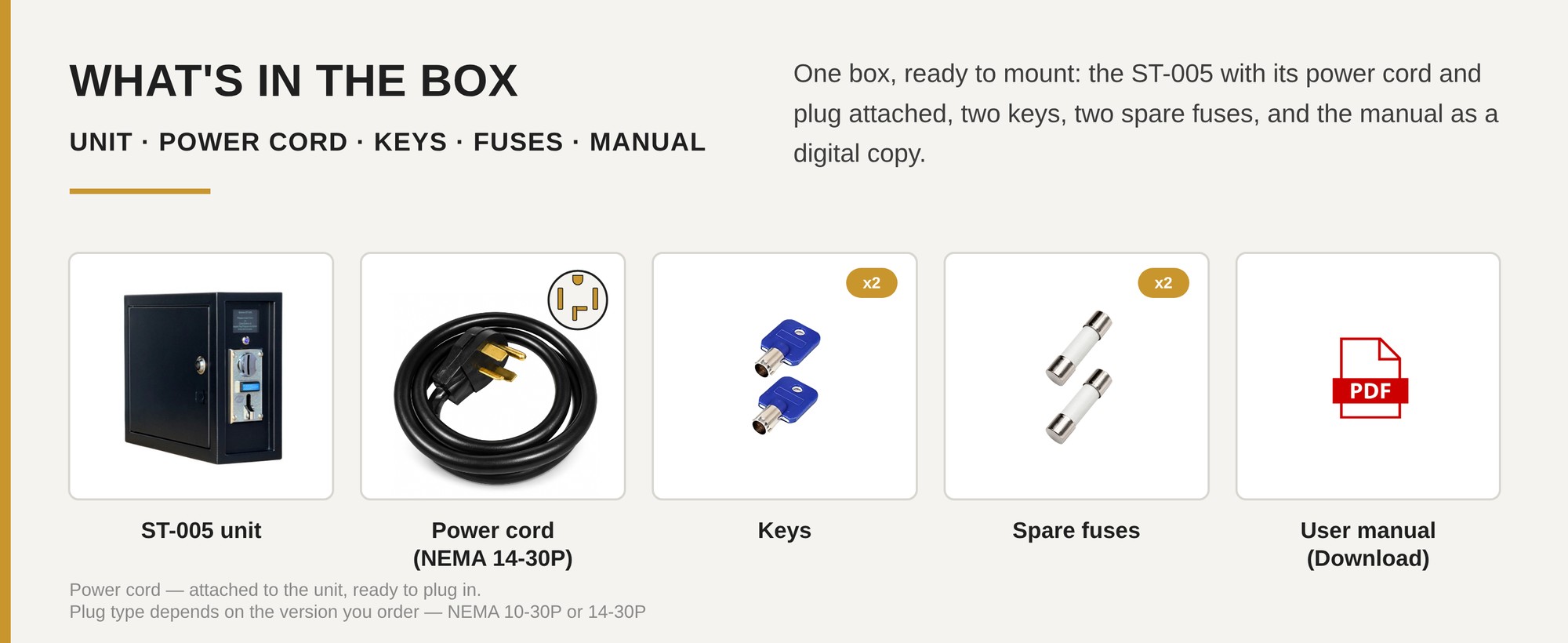

The ST-005 with its power cord and plug attached, two keys, two spare fuses and the manual as a digital copy — shown for the 3-prong and the 4-prong version.
0102 / 02
Q&A
What are payment gateways and payment methods?
A payment gateway is the platform you use to receive money into your account (such as PayPal, Square, or Stripe) when users pay with payment methods like credit/debit cards, Apple Pay, Google Pay, Venmo, or Cash App.
Are there any subscription plans or monthly fees for using mobile payments?
Sintron does not charge any subscription or monthly fee. Your payment gateway sets its own transaction fees, so check the current rates with PayPal, Stripe or Square.

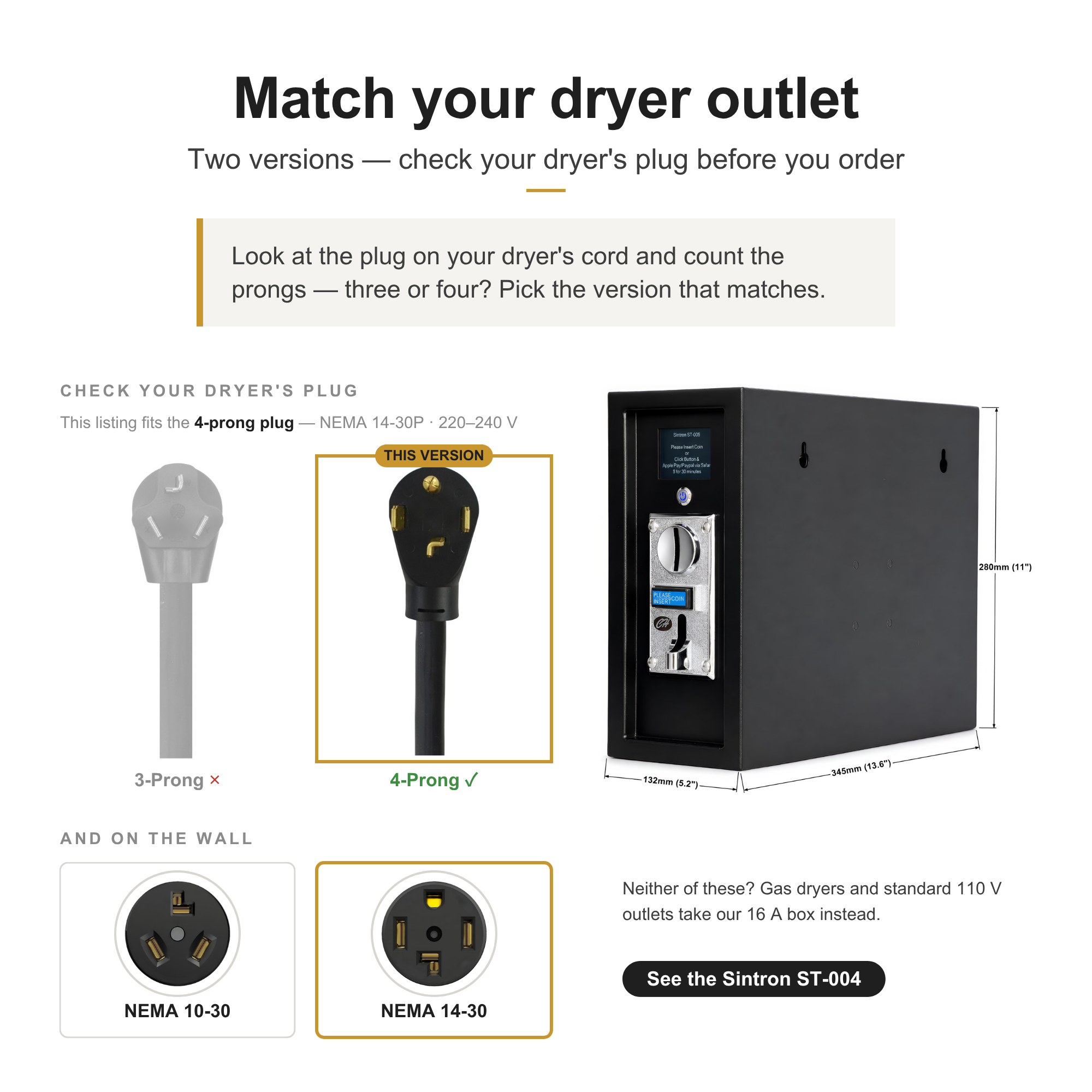

Which version do I need — 3-prong or 4-prong?
Look at the plug on your dryer's power cord and count the prongs. Three prongs is NEMA 10-30P, four prongs is NEMA 14-30P. Order the ST-005 version that matches the plug you have.
Do I need an electrician for the installation, or can I do it on my own?
No rewiring is involved — the box goes between the wall outlet and the dryer, so most owners set it up themselves. Step-by-step instructions and video tutorials are provided.
Can the Sintron ST-005 record transaction history?
Yes. The box keeps a counter of the payments it has taken, and with email reports switched on it sends 24-hour totals with coins and mobile payments listed separately. Email reports need the box connected to the internet.
COMPARE THE SINTRON BOXES
| ST-002 | ST-003 | ST-004 | ST-005 | ST-004-F | |
|---|---|---|---|---|---|
| Operating Voltage | 110V~120V for US/Canada 220V~240V for UK/EU |
220V~240V for US/Canada (dryer circuit) |
110V~120V for US/Canada 220V~240V for UK/EU |
220V~240V for US/Canada (dryer circuit) |
110V~120V for US/Canada 220V~240V for UK/EU |
| Current Rating | Max 16 Amp | Max 30 Amp | Max 16 Amp | Max 30 Amp | Max 16 Amp |
| Plug Type | Household (US/UK/EU) | Dryer (NEMA 10-30/14-30) | Household (US/UK/EU) | Dryer (NEMA 10-30/14-30) | Household (US/UK/EU) |
| Mobile Payment | ✘ | ✘ | ✔ | ✔ | ✔ |
| Bluetooth App Pay (ScanPay) | ✘ | ✘ | ✔ | ✔ | ✔ |
| Off Hours Scheduling | ✘ | ✘ | ✔ | ✔ | ✔ |
| Coin Types Supported | Up to 8 | Up to 8 | Up to 8 | Up to 8 | Up to 8 |
| Offline Coin Operation | ✔ | ✔ | ✔ | ✔ | ✔ |
| Payment Gateway Support | None | None | PayPal, Stripe, Square & more | PayPal, Stripe, Square & more | PayPal, Stripe, Square & more |
| Customizable LCD Text | ✘ | ✘ | ✔ | ✔ | ✔ |
| OTA Firmware Update | ✘ | ✘ | ✔ | ✔ | ✔ |
| USPTO Design Patent | ✔ | ✔ | ✔ | ✔ | ✔ |
