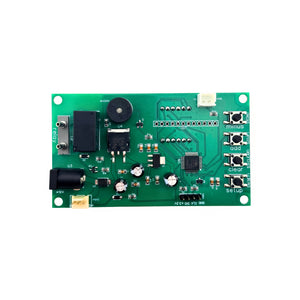

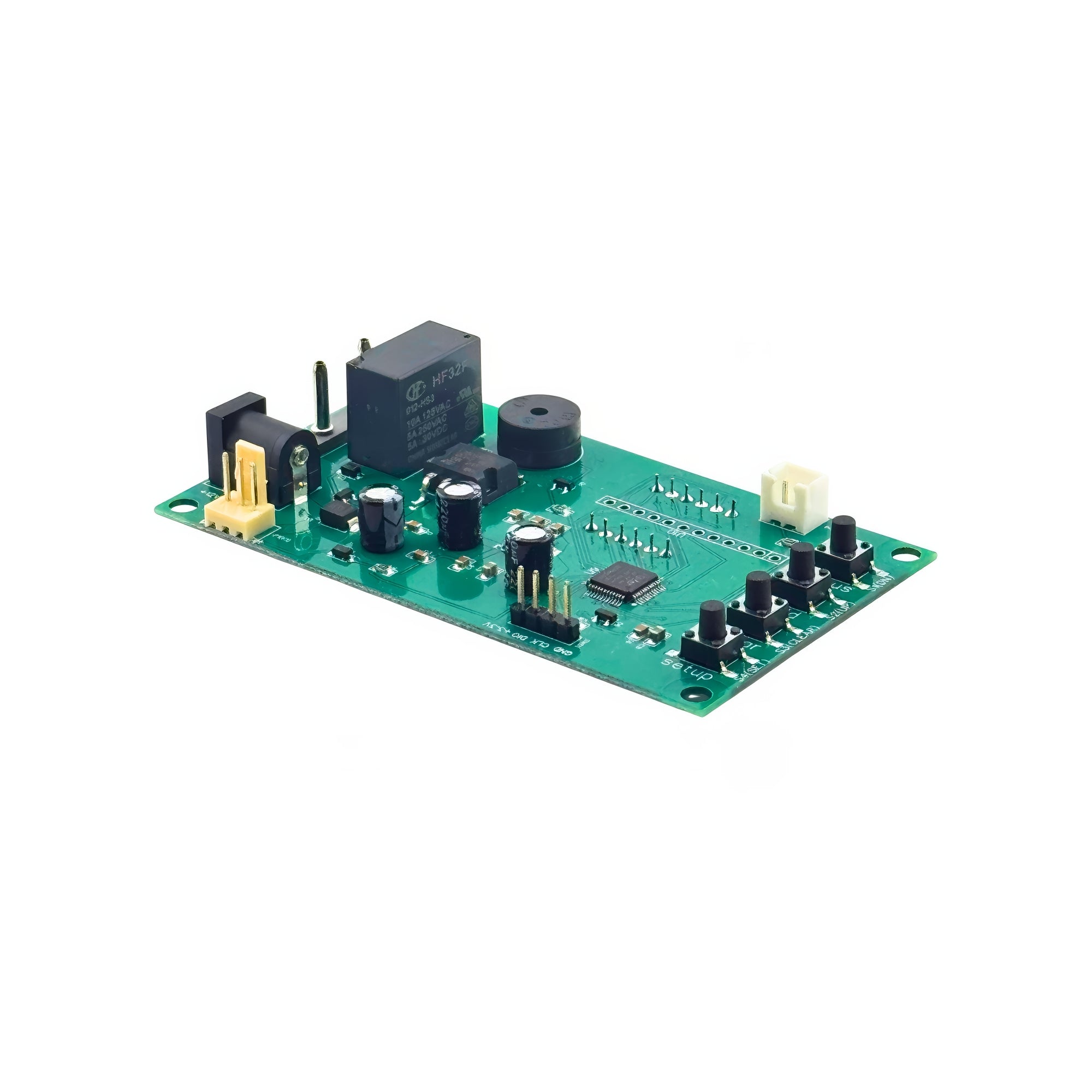

[Sintron] CH-15 Timer Control Board Power Supply for Coin / Bill acceptor selector

Regular price ~~$27.90~~ $11.95 Sale

Model

Quantity

Store now in stock

click to check Delivery Time

Features

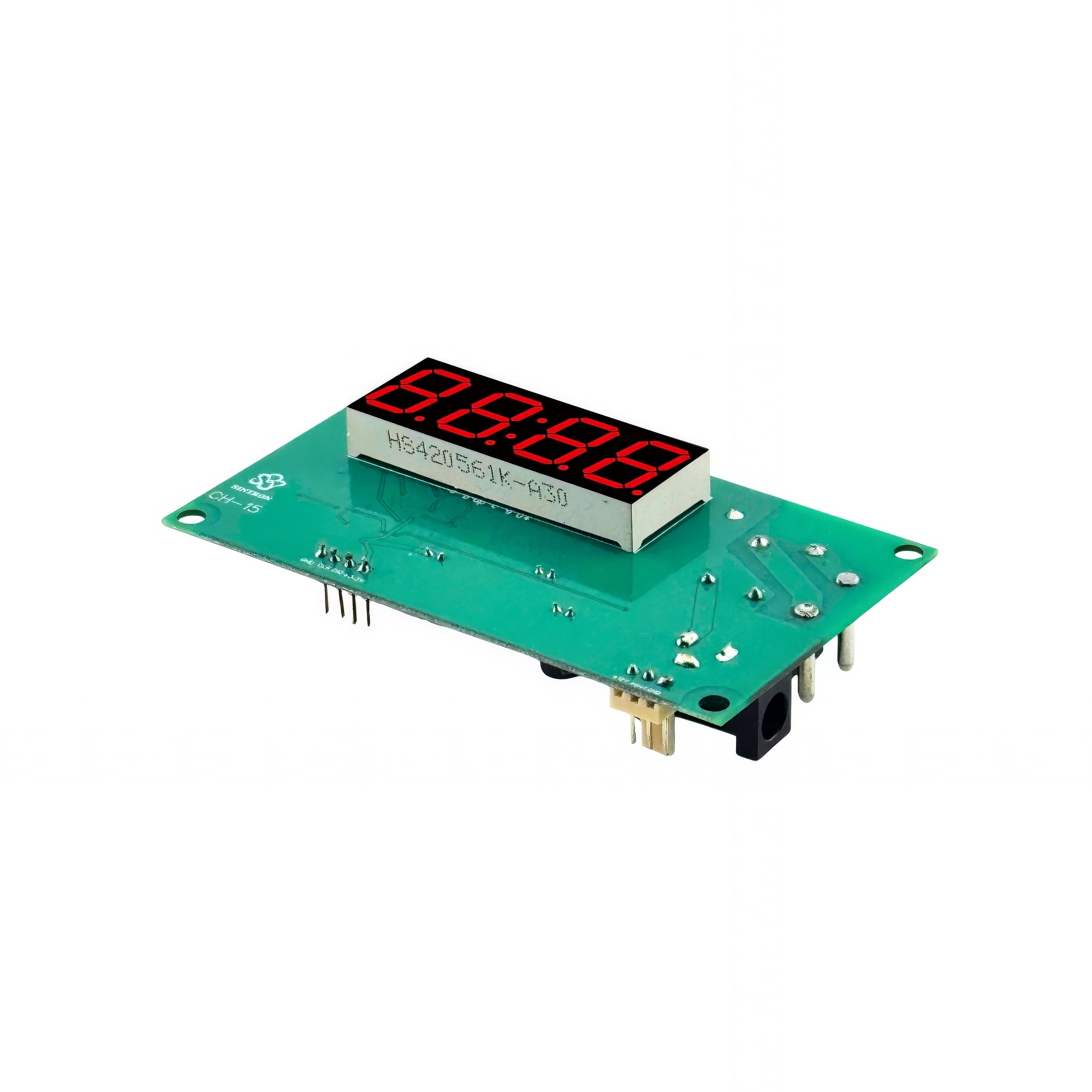

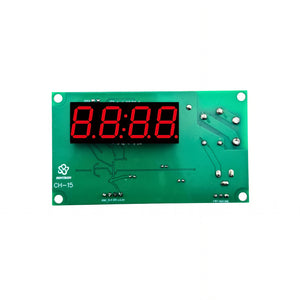

This is used for power supply time control; the timer can be set by seconds or by minutes; can be used with a coin acceptor or other devices that can output pulse signals, and you can set up for what values to start your machine.

Specifications
1. Controls electrical devices ( TV, Massage chair...) power.
2. AC 1250W DC 500Watt electrical relay capacity.
3. Suitable for public place location.
4. Digital timer: rate adjustable by owner through two simple push button switch; size: 54.30 mm × 91.0 mm.

Manual
1.Power wire: yellow wire +12V, black wire 0V(ground).
2.Signal input: white wire connect to coin acceptor's output or other devices output.
3.Connect K1 K2 wires to your devices.
4.Set up the time and price for machine to work by pushing buttons s1(+), s2(-), and s3(setup).

Setup Process
1.Press S3, into time setup mode, then use s1(+), s2(-), buttons to set up time as you need.
2.Press S3 for 5 seconds, into price setup mode, then use s1(+), s2(-) to setup up the price value as you need.

For example, If you are using 10cent, 20cent and 50cent coins. we can setup with coin acceptor output as 1, 2 and 5 pulses.
Then set up the time (say 10 minutes) and price (say value 5 ), then when you insert coins and reach total amount 50 cents, the timer board will allow your machine to run for 10 minutes.

Package Details
Unit Type: piece
Package Weight: 0.15kg (0.33lb.)
Package Size: 9cm x 10cm x 6cm (3.54in x 3.94in x 2.36in)

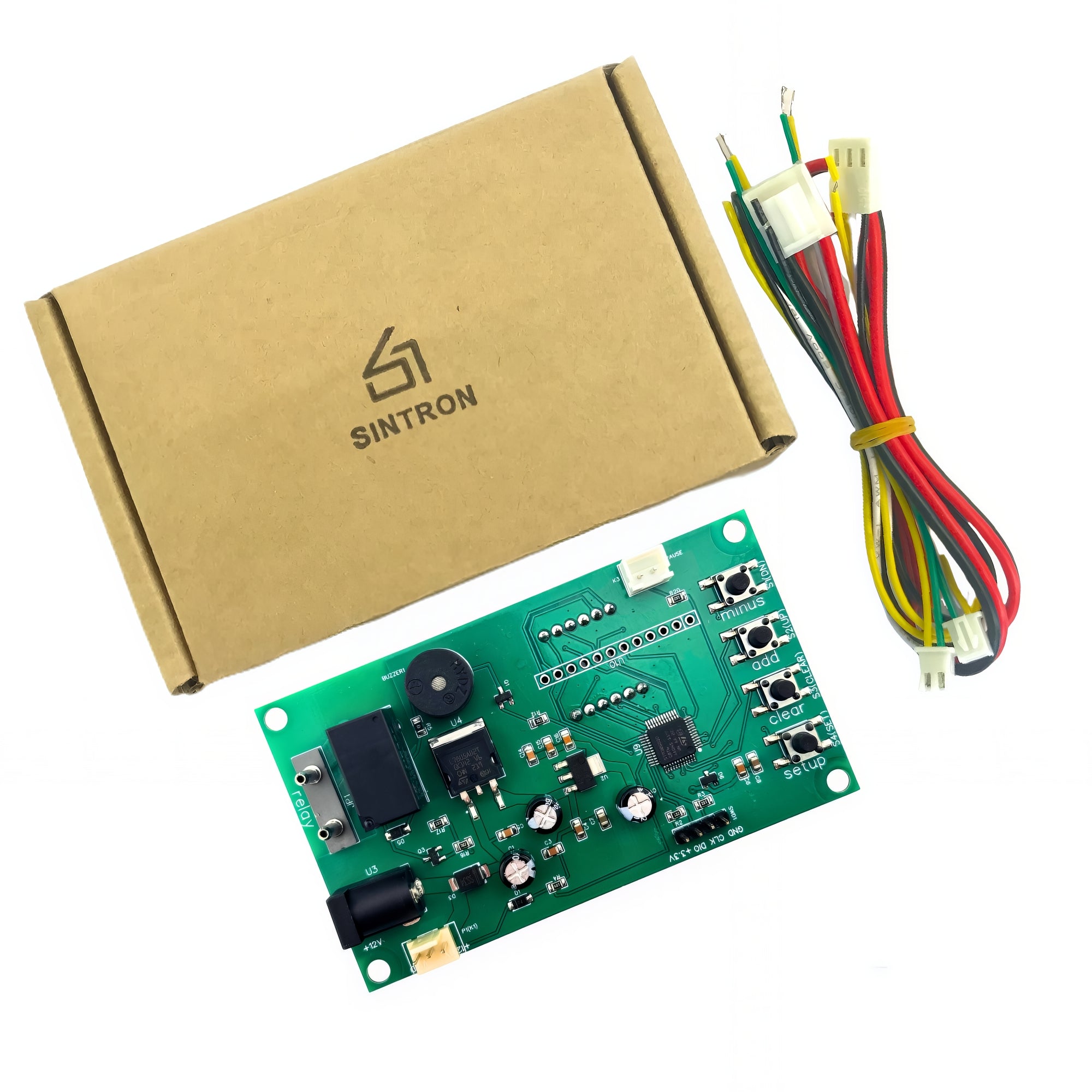

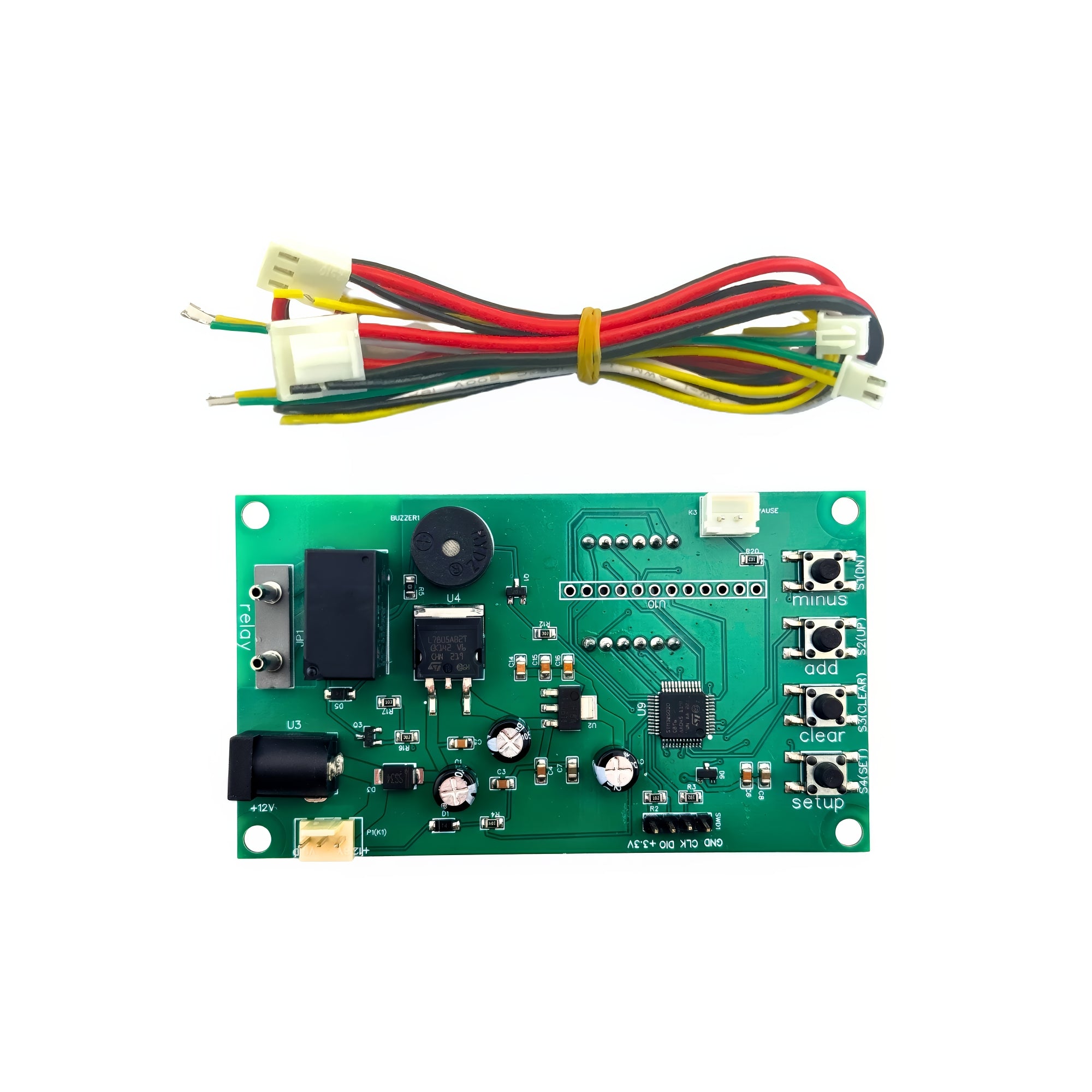

Package list included

CH-15 timer board
power cable
relay cable
